┃产品描述
┃ Product Descriptions
专为瓶装饮品或规则产品(纯净水、饮料、果汁、乳制品、日化用品)的包装要求设计制造。在产品前进输送过程中,自动组合成包,节省时间,提高效率。可编程控制器(PLC)控制,可实现自动化工作流程。恒温式封切刀,表面喷涂特氟龙,切口平整、牢固。触摸屏操作,界面友好,便于人机交流及操控。
底托包装,可适合不同瓶颈及不同组合的包装。中低速度热收缩膜包装机领域的最佳首选机型。操作简单、维修方便。

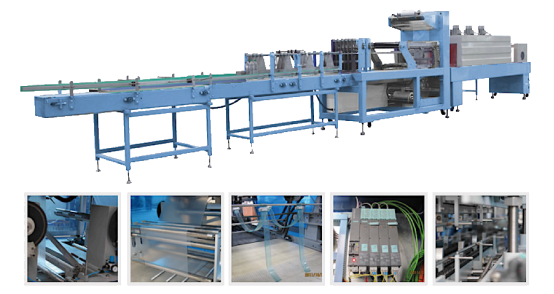

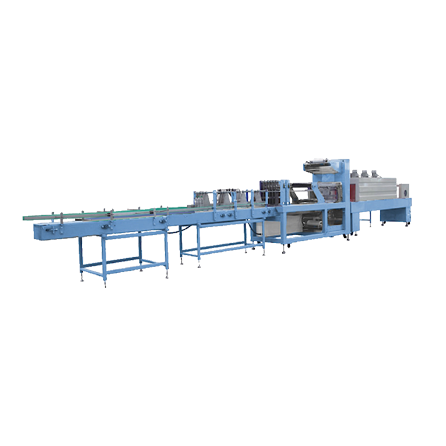

Specially designed and manufactured for the packaging requirements of bottled drinks or regular products (purified water, beverages, fruit juices, dairy products, daily chemicals). In the product forward transportation process,Automatically combine into packages to save time and improve efficiency.Programmable controller (PLC) control for automated workflows.
Thermostatic sealing cutter, surface spray Teflon, cut smooth, firm.Touch screen operation, friendly interface, easy man-machine communication and control.Base packaging, can be suitable for different bottlenecks and different combinations of packaging. The best choice in the field of medium and low speed heat shrink film packaging machines. Simple operation and easy maintenance.
┃产品详情
┃ Product Details
整机外形尺寸: | L14000*W1100*H2100mm |
整机重量: | 2500kg |
最大包装尺寸: | L420*W280*H350 |
包装速度: | 15-20pcs/min |
输送带宽度: | 620mm |
工作电源/功率: | 三相五线380v |
工作气压: | 0.6-0.8Mpa |
整机功率: | 30KW |
Overall Dimensions: | L14000*W1100*H2100mm |
Weight: | 2500kg |
Maximum Packing Size: | L420*W280*H350 |
Packing Speed: | 15-20pcs/min |
Conveyor Belt Width: | 620mm |
Power supply: | three-phase five-wire 380v |
Working Air Pressure: | 0.6-0.8Mpa |
Machine Power: | 30KW |
┃包装效果展示
┃ Packaging Effect Display

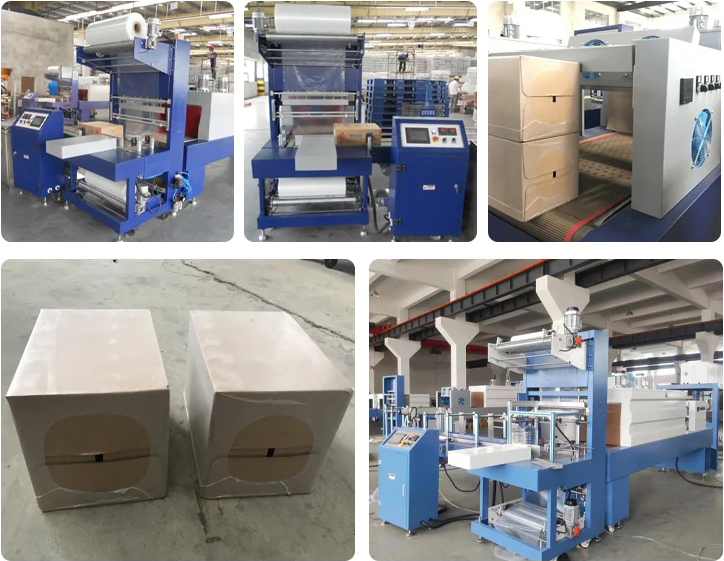

┃车间实拍
┃ Workshop Shooting
┃关于我们
┃ About us
我们是一家专业从事热收缩包装机、纸箱套标机、贴标机、码垛机、输送包装机、线等食品饮料调味品日化用品的后道包装机械专业制造商。先进的设计理念,可靠的质量服务,完善的管理制度,赢得了众多客户的赞许,“努力超越,追求卓越”是我们的不懈追求,“优质产品,星级服务”是我们对客户的承诺。
We are a professional manufacturer of heat-shrinkable packaging machine, Carton Packaging Machine, labeling machine, labeling machine, palletizer, conveyor line, etc..Advanced design concept, reliable quality service, perfect management system, has won the approval of many customers, "Strive to exceed, the pursuit of excellence” is our unremitting pursuit,"Quality products, star service” is our commitment to customers.
